Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Brand Name : MOOGE

Model Number : MEB

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 98000-12000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1 SET PER 55 DAYS

Delivery Time : 55-65 DAYS

Final product : Clean Plastic Flakes

Application : PP PE Bottle Recycling

Raw material : Waste PE PP PET Bottle

Material Processed : Separating-crushing-washing-drying

After-sales Service Provided : Engineers

Keywords : Plastic Crushing Washing Recycling Line

Contact Now

5 可添加模块

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Why Choose Us


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Product Overview

This Waste Plastic Pp Pe Hdpe Bottle Chips Recycling Machine Line is used to recycling the waste HDPE PE Bottles and buckets, PP hollow container, ABS rigid plastic and so on.The whole recycling line including the conveyor belt, metal detector, plastic wet
crusher, cold water washing tank, high speed friction washer, centrifugal dryer machine, hot air drying system and label separator
machine, material collecting packing system.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

After crushing, washing and drying, the waste dirty rigid plastic will turn to be small clean dry plastic flakes with size range from 10-16mm, we can also make the size reduction as you requirement.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Product Specification

The Hdpe Bottle Recycling Pp Pe Bottle Barrel Crushing Washing Machine we made with capacity from 300kg/h to 3000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's requirements.


Model

Capacity

Installed Power

Water Supply

Area Required

MEB-300

300kg/hr

130KW

5-6m³/hr

38*4.5*5m

MEB-500

500kg/hr

145KW

7-8m³/hr

38*4.5*5m

MEB-1000

1000kg/hr

190KW

8-10m³/hr

42*5*5m

MEB-1500

1500kg/hr

230KW

10-15m³/hr

45*5*5m

MEB-2000

2000kg/hr

280KW

15-20m³/hr

45*5*5m


We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request


Item

Specification

Raw Material

Waste Rigid Plastic PE bottle, HDPE barrel, PP bucket, PS Box, ABS shell, etc

Finished Product

Clean dry plastic flakes (size can be recycled as buyer request)

Main Machine List

Belt Conveyor, Shredder, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Hot Air Pipeline, Packing Silo

Machine Material

Machine frame is made by carbon steel, the machine washing part is made by SUS 304

Main Components

NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.

Electric Components

ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.

Warranty Period

One Year from the Machine Operation within 18 Months from the B/L Date

Turnkey After Service

Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;


Details Images


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

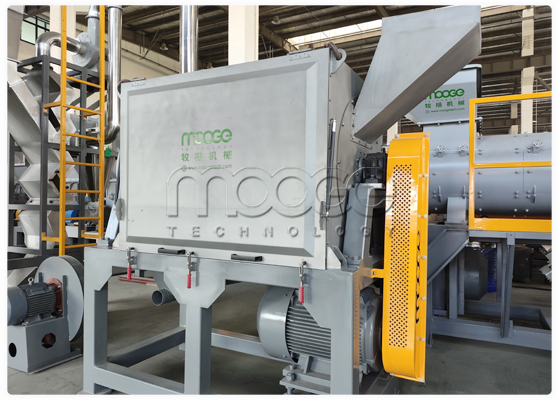

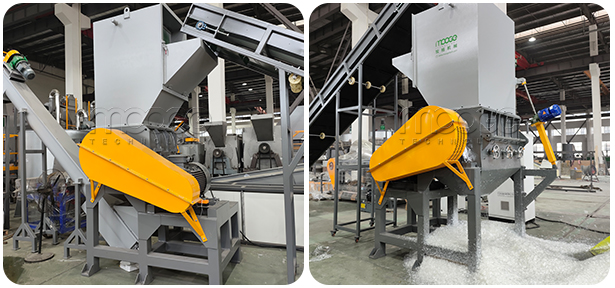

Plastic Crusher Machine
Function: crushing the material into flakes
>With water inlet can do wet crushing
>Use big roller bearing ensure durable use
>With heavy duty pulley easier for machine working
>Bearing house is installed outside of the chamber so no dirty goes inside which prolong the lifespan
> Upside hopper is covered by shelter so no flakes popped out.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

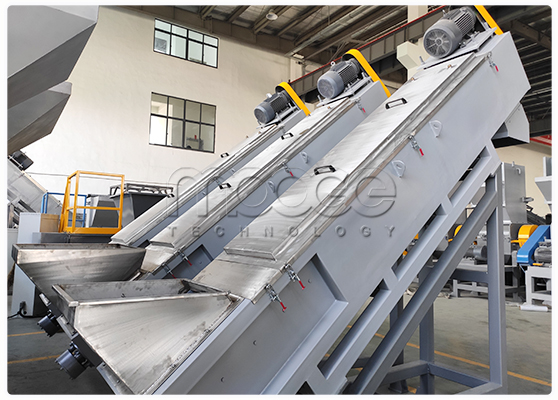

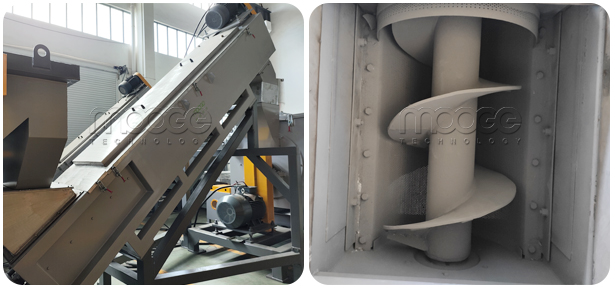

Friction Washing Loader
Function: Friction washing the material and loading up it
>With water injection system into the rotor for better washing and also clean the screen mesh
>The screen is with fast clip to tight and loose for easy maintenance
>Up and down both mounted with bearing design ensure low maintenance and long use life
>Material contact with water are made of SUS304


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

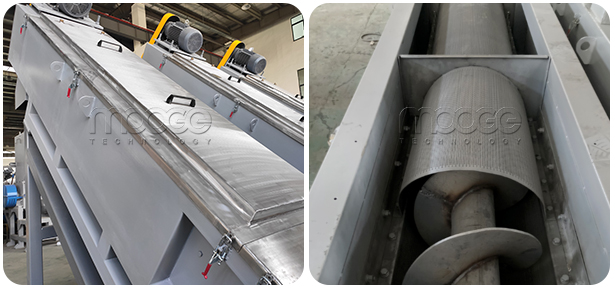

Floating Washing Tank
Function: Floating washing separate the sand, soil and other dirties
>The roller is specially made can have more washing for flakes but less water take out
>Bottom with positive and negative screw to pushing the dirty which is easy for the side screw loader to loading out
>The washing tank can be made with cover and double layer temperature protection for hot water washing


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Horizontal Dewatering Machine
Function: take out dirty and remover water from the bottle flakes
>With high rotary speed 1500rpm
>Roller bearing is fixed outside of the rotor for durable use
>Inside with mesh layer, mesh diameter size: 3mm
>With water spray system to clean the mesh
>Outside cover drum is made by stainless steel with 3mm thickness


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

“Zig-zag” Label Separator

Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.
>Blower with air valve to control the air flux of blower.
>Bottom with air blower and pipe for collecting the pet flakes
>Zig zag main chamber one set made by stainless steel and with visible window



Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Customer Onsite


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine
and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the
long-term business partner all over the world.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles

Marketing Campaign

We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine for test run at th booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for
visit and discuss about detailed issues.


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles
FAQ


Cleaning Washing Waste Shredder Crusher Machine Recycling Line PP PE Plastic Bottles
